Model: GP-UD850GM
Type: Intel Form Factor ATX 12V v2.31
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 12-6A
Input Frequency: 60-50 Hz
Output Capacity: 850W
Dimension: 150 x 140 x 86 mm

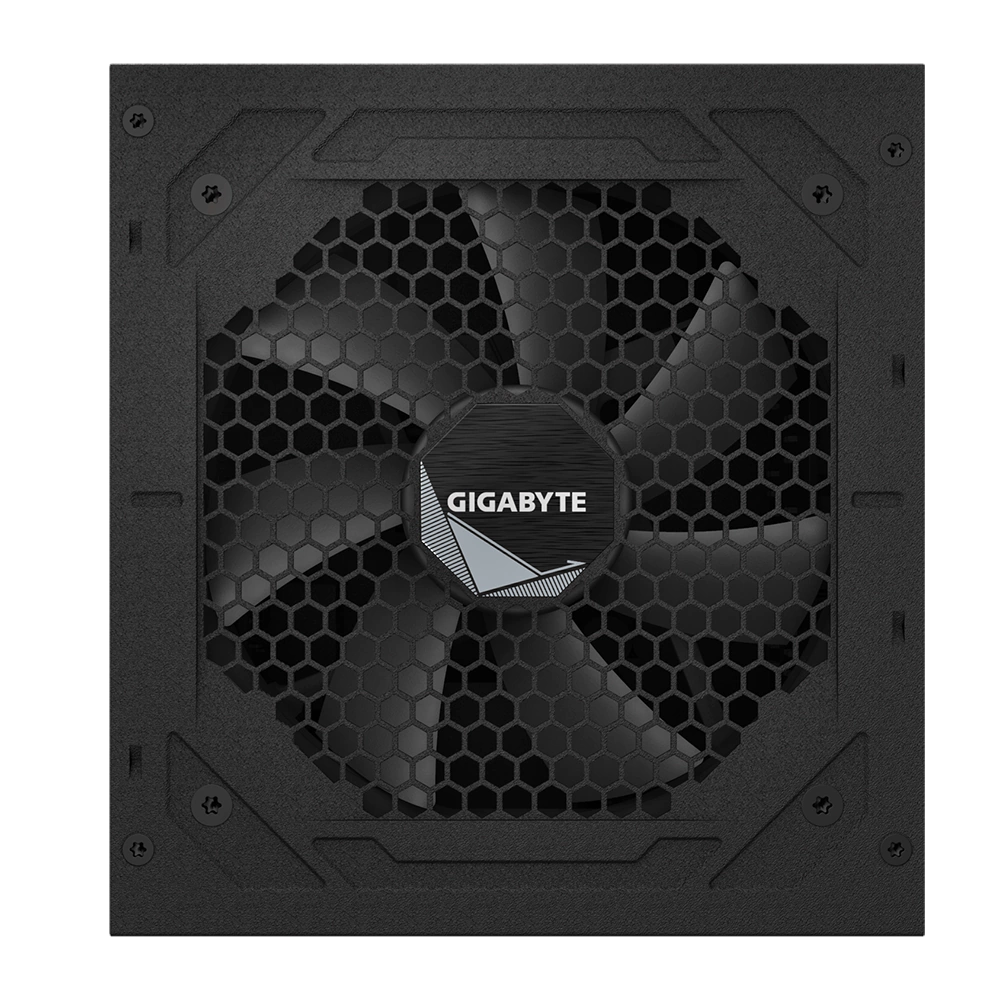

Fan Type: 120mm Hydraulic Bearing (HYB) fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Flat, All black

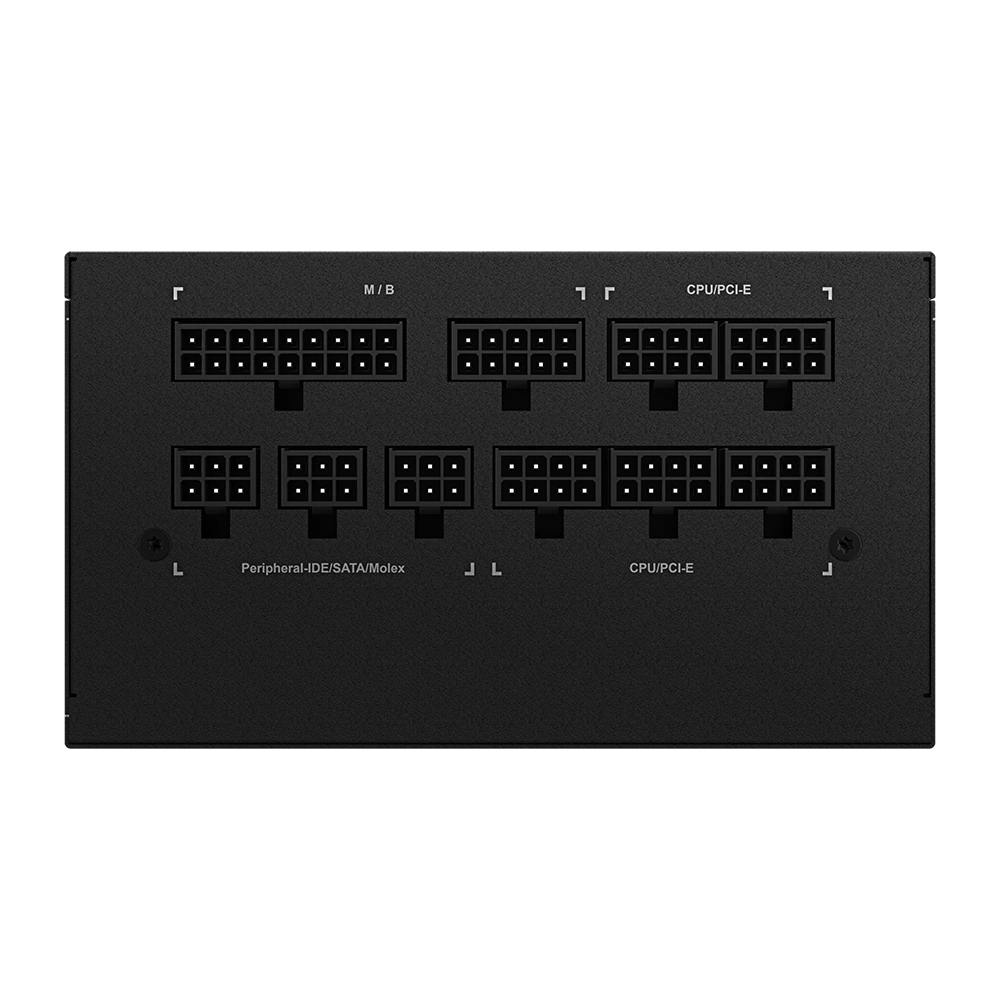

Connectors:
ATX/MB 20+4 Pin x 1: 610mm ×1
CPU/EPS 4+4 Pin x 2: 600mm ×2
PCI-e 6+2 Pin x 4: 600mm + 150mm ×2
SATA x 8: 600mm + 150mm + 150mm + 150mm ×2
4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm + 120mm + 120mm + 150mm ×1
Enlace del producto: https://www.gigabyte.com/es/Power-Supply/GP-UD850GM
